Fiber Optic Connectors

Fiber optic cables transmit data as pulses of light through thin strands of glass or plastic fiber, rather than electrical signals through copper wire. This makes them immune to electromagnetic interference (EMI), capable of much higher speeds, and able to span much greater distances than copper cables. Fiber optic cables are essential for internet backbone infrastructure, data centers, and high-speed network connections. Several connector types exist, each designed for different applications.

Primary Use

High-Speed Networking & Long-Distance Data Transmission

Reference Image

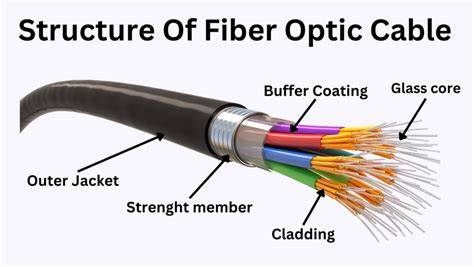

Fiber Optic Connectors cable and connector

Key Features

  • Uses light (photons) instead of electricity (electrons) for data transmission
  • Immune to electromagnetic interference (EMI) and radio frequency interference (RFI)
  • Much greater distance capability than copper (up to 100+ km for single-mode)
  • Higher bandwidth potential than copper cables
  • Two main cable types: Single-mode (SMF) and Multi-mode (MMF)
  • Single-mode: yellow jacket, smaller core (9 microns), longer distance, laser light
  • Multi-mode: orange or aqua jacket, larger core (50-62.5 microns), shorter distance, LED light
  • Connectors must be kept extremely clean - even dust can degrade signal quality
  • More fragile than copper cables - cannot be bent at sharp angles

Variants & Standards (6)

SC (Subscriber Connector)

Square push-pull connector, one of the most common fiber connectors

  • - Square/rectangular housing
  • - Push-pull coupling mechanism (snap in, pull to remove)
  • - 2.5mm ferrule
  • - Often used in data centers and telecommunications
  • - Easy to remember: "Square Connector" or "Snap-in Connector"
ST (Straight Tip)

Round connector with a bayonet twist-lock mechanism

  • - Round housing with a bayonet mount
  • - Twist to lock, twist to unlock
  • - 2.5mm ferrule (same as SC)
  • - Common in older network installations
  • - Easy to remember: "Straight Tip" or "Stab and Twist"
LC (Lucent Connector)

Small form-factor connector, most popular in modern installations

  • - Half the size of SC connectors
  • - Push-pull coupling with small latch
  • - 1.25mm ferrule (smaller than SC/ST)
  • - Most popular connector for modern fiber installations
  • - Often used in duplex pairs
  • - Easy to remember: "Little Connector" or "Lucent Connector"
MT-RJ (Mechanical Transfer Registered Jack)

Compact duplex connector that resembles RJ-45

  • - Houses two fibers in a single connector
  • - Similar in appearance to RJ-45
  • - Snap-in latch mechanism
  • - Less common than SC, ST, or LC
Single-Mode Fiber (SMF)

Long-distance fiber with a small core

  • - Yellow jacket color
  • - 9-micron core diameter
  • - Uses laser light source
  • - Distances up to 100+ km
  • - Higher cost but greater distance and bandwidth
Multi-Mode Fiber (MMF)

Shorter distance fiber with a larger core

  • - Orange (OM1/OM2) or Aqua (OM3/OM4) jacket
  • - 50 or 62.5 micron core diameter
  • - Uses LED or VCSEL light source
  • - Distances typically up to 2 km
  • - Lower cost, used within buildings and campuses

Quick ID Tips

1 Cable jacket color tells you the type: YELLOW = single-mode, ORANGE = multi-mode (OM1/OM2), AQUA = multi-mode (OM3/OM4)
2 Fiber connectors are visually distinctive - they have a ferrule (thin protruding tip) that houses the fiber
3 SC connectors are square and snap in (Square Connector, Subscriber Connector)
4 ST connectors are round with a bayonet twist-lock (Straight Tip)
5 LC connectors are small and look like a miniature SC (Lucent Connector)
6 Fiber cables are typically thinner and lighter than copper Ethernet cables

A+ Exam Notes

Yellow jacket = Single-mode, Orange jacket = Multi-mode (OM1/OM2), Aqua = Multi-mode (OM3/OM4)
SC = Square push-pull, ST = round twist-lock, LC = small push-pull (half-size SC)
Single-mode = longer distance (WAN), Multi-mode = shorter distance (LAN)
Fiber is immune to EMI - important advantage over copper
Fiber connectors use a ferrule to align the fiber precisely
LC is the most popular connector in modern data centers due to its small size (higher density)
APC (Angled Physical Contact) connectors have a green ferrule - lower signal reflection
UPC (Ultra Physical Contact) connectors have a blue ferrule - standard polish
